Electric Cargobike – Ultimate Curve – Mid engine

Electric Cargo Bike – Ultimate Curve – Mid Engine

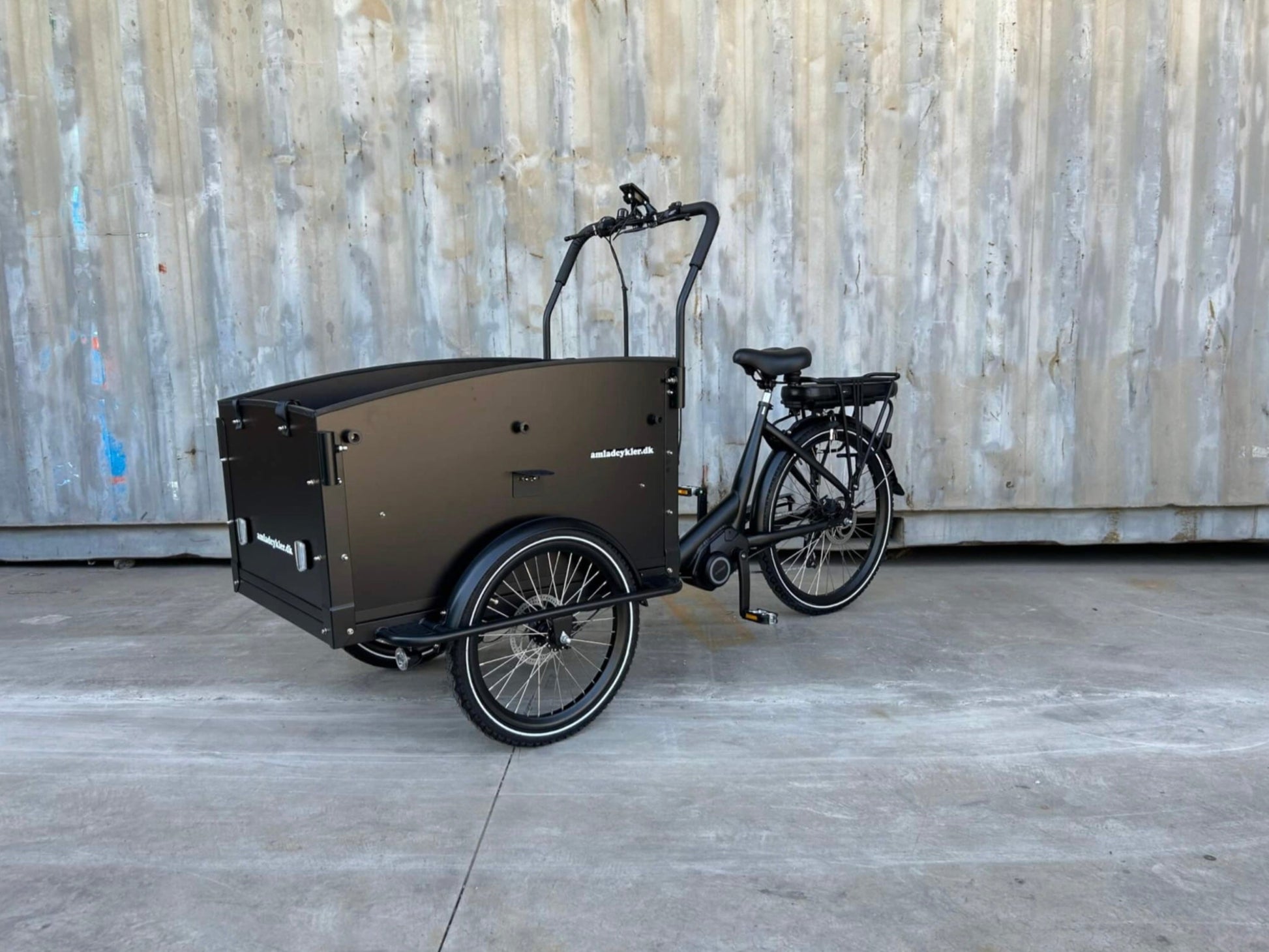

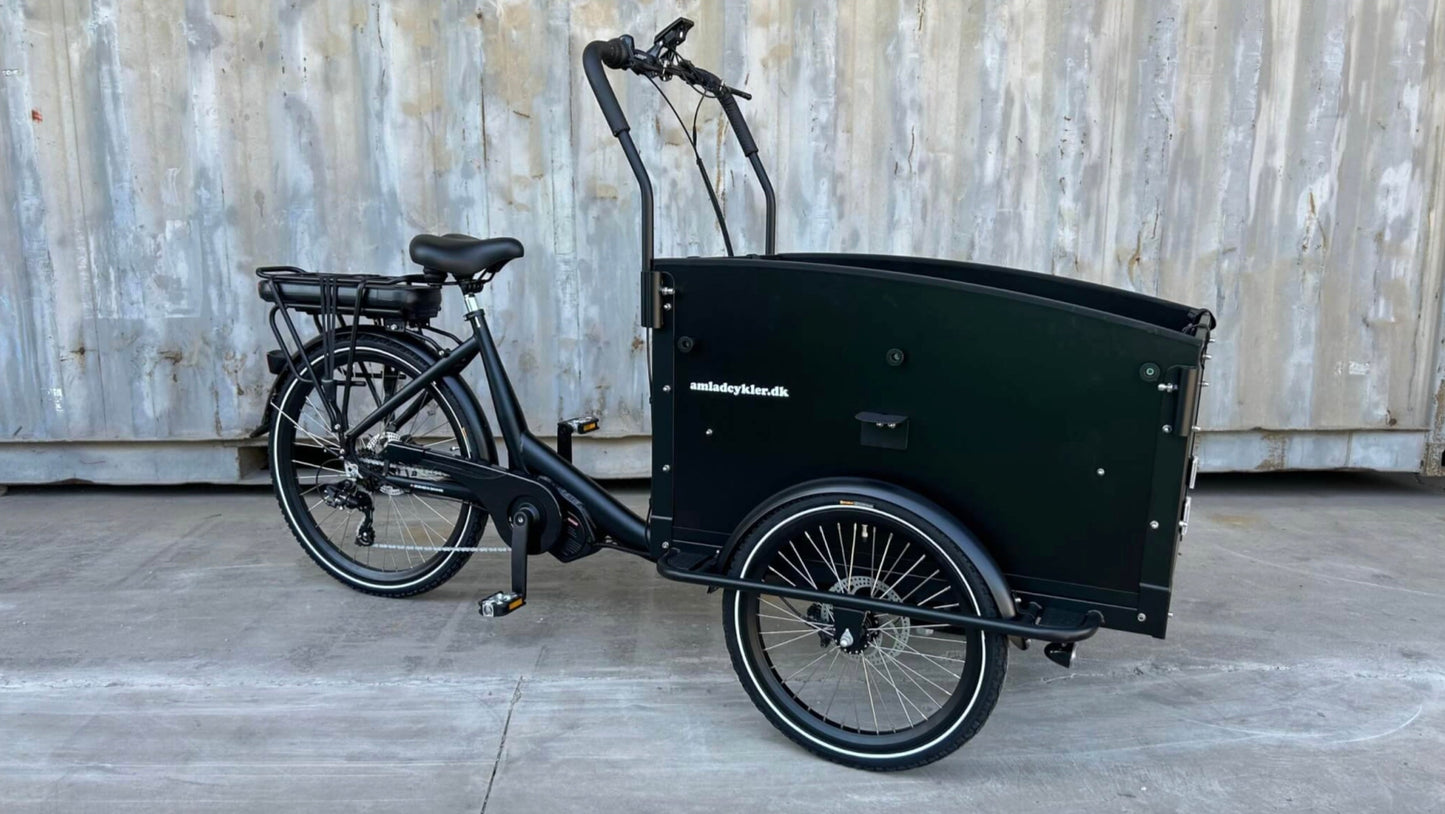

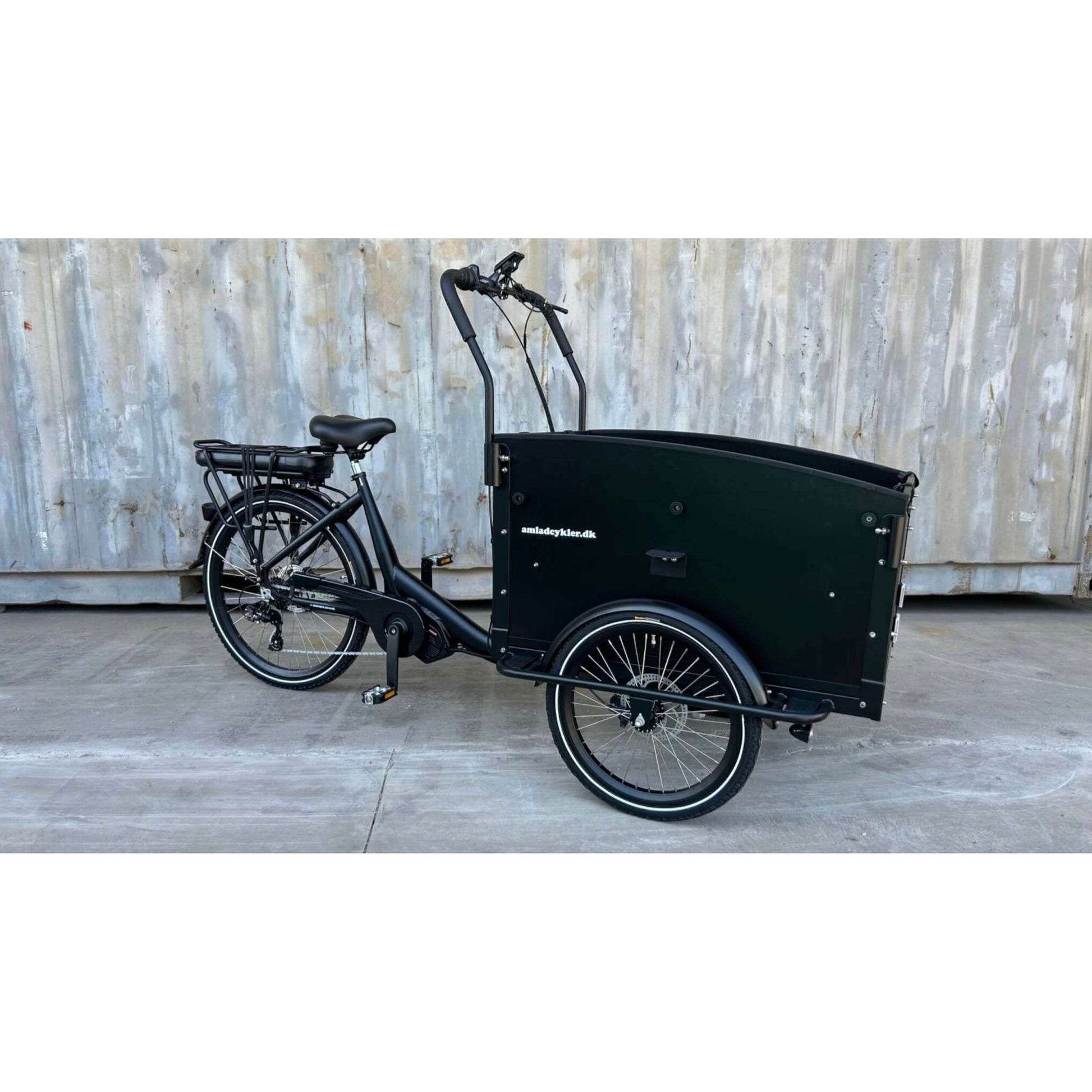

The Ultimate Curve – Mid Engine is Amcargobike’s most advanced electric cargo trike, offering pedal assist up to 15.5 mph (25 km/h) – the maximum legal speed for e-bikes on UK roads. It’s powered by a robust 250W mid-drive (crank) motor delivering an impressive 120Nm of torque for a smooth, natural riding experience and exceptional hill-climbing ability.

Featuring a sleek slimline frame in matte black, a high-capacity 14Ah (504Wh) battery, and the latest Anti-Tilt steering system, the Ultimate Curve is designed for both everyday commutes and longer family outings. The battery offers a range of up to 65 km (40.4 miles), even in colder weather.

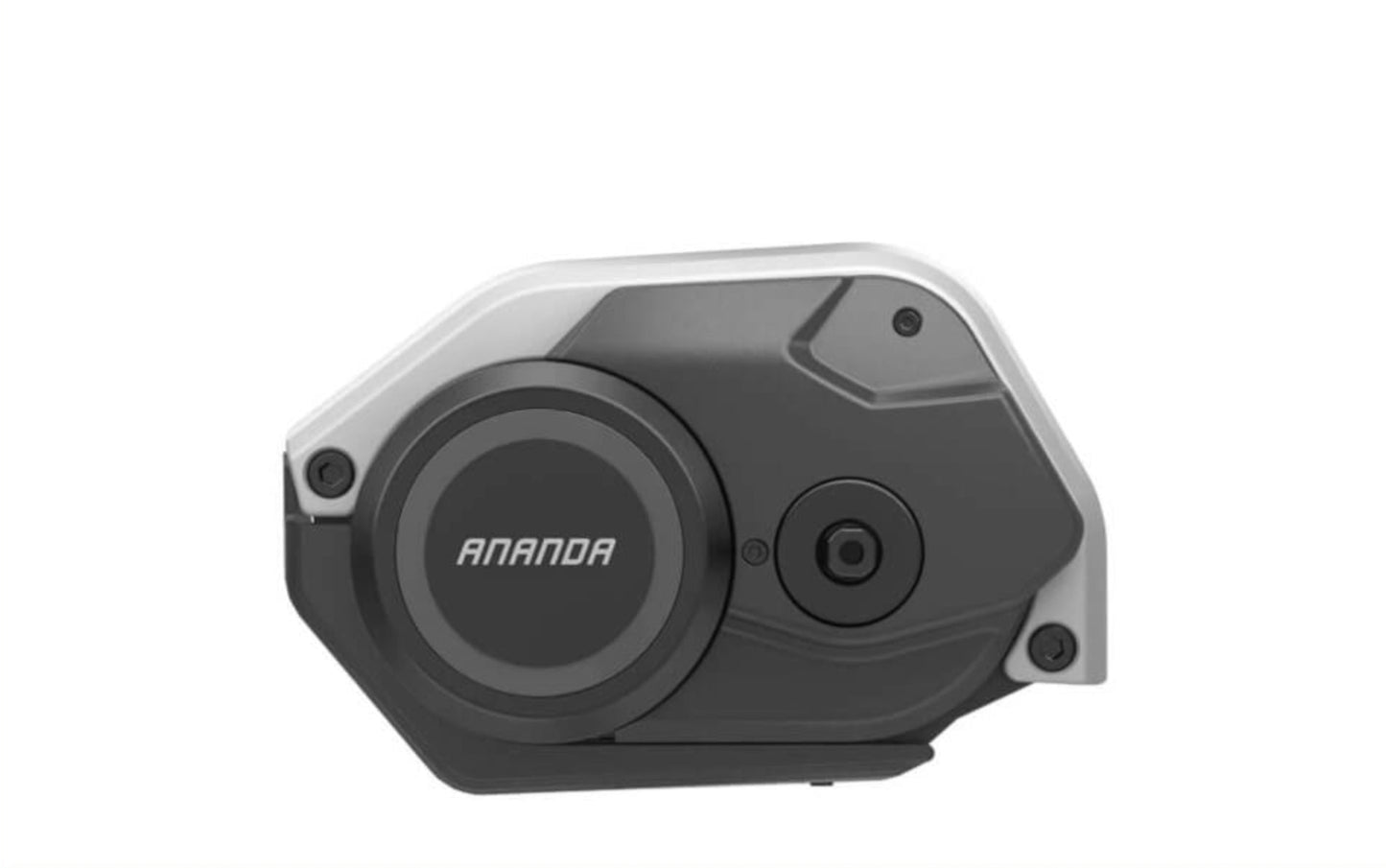

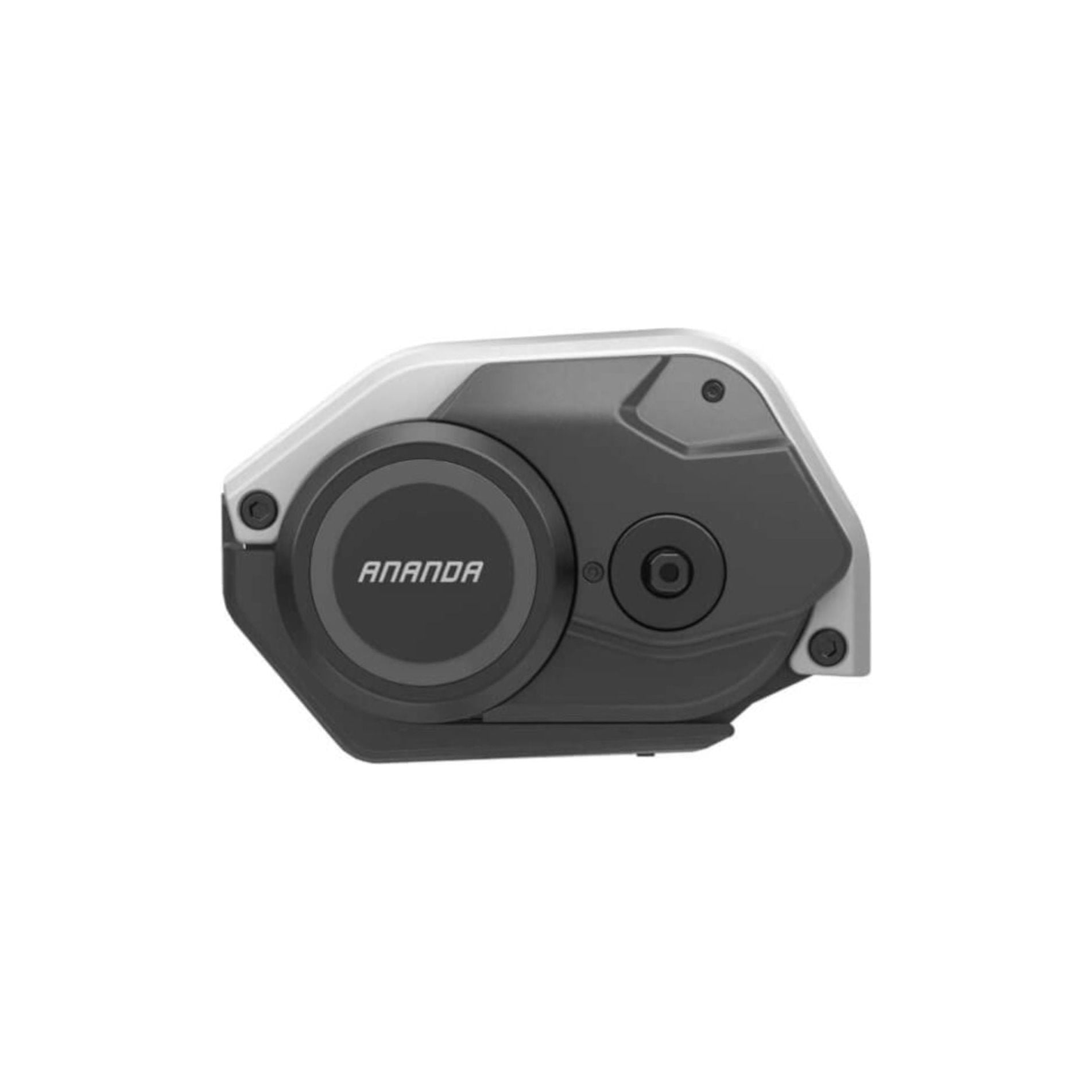

Mid-Drive Performance & Control
The centrally mounted mid-drive motor ensures optimal weight distribution and a more intuitive, balanced ride — especially when carrying children or cargo. It’s quiet, efficient, and CE approved for UK road use.

Safety Meets Comfort
The bike is fitted with BENGAL hydraulic disc brakes front and rear, along with an integrated electric brake system. This cuts motor power the moment you brake, delivering safer, smoother stops while reducing the force needed on the brake handles.

The patented Anti-Tilt steering system helps the handlebars self-straighten after turning, offering increased confidence and balance – particularly helpful at low speeds or in tight spaces.

Key Features

• 250W mid-drive (crank) motor with 120Nm torque (CE approved)

• Pedal assist up to 15.5 mph (25 km/h) – UK legal

• 14Ah (504Wh) lithium-ion battery – range up to 65 km

• BENGAL hydraulic disc brakes (front & rear) + parking brake

• Electric brake system – motor cut-off for added safety

• Anti-Tilt steering – automatic straightening for smooth handling

• Steel/aluminium frame with slimline matte black design

• 3 x Kenda anti-puncture tyres with reflective sidewalls

• User-friendly colour LCD display with assist levels & USB charging

• Walking mode – up to 5 km/h with button hold

• Quiet, energy-efficient, and ideal for carrying heavier loads or tackling hills

Warranty

• 10-year warranty on the frame

• 2-year warranty on battery and electrical components (excludes standard wear and tear)

Specifications

• Colour: Matte black with 5-layer protective finish (paint, lacquer, anti-rust, anti-slip seal)

• Frame: Aluminium and high-tensile steel construction

• Motor: 250W mid-drive (crank) motor with 120Nm torque

  • Quiet, energy-efficient, and CE approved

• Top Speed: 15.5 mph (25 km/h) – UK legal

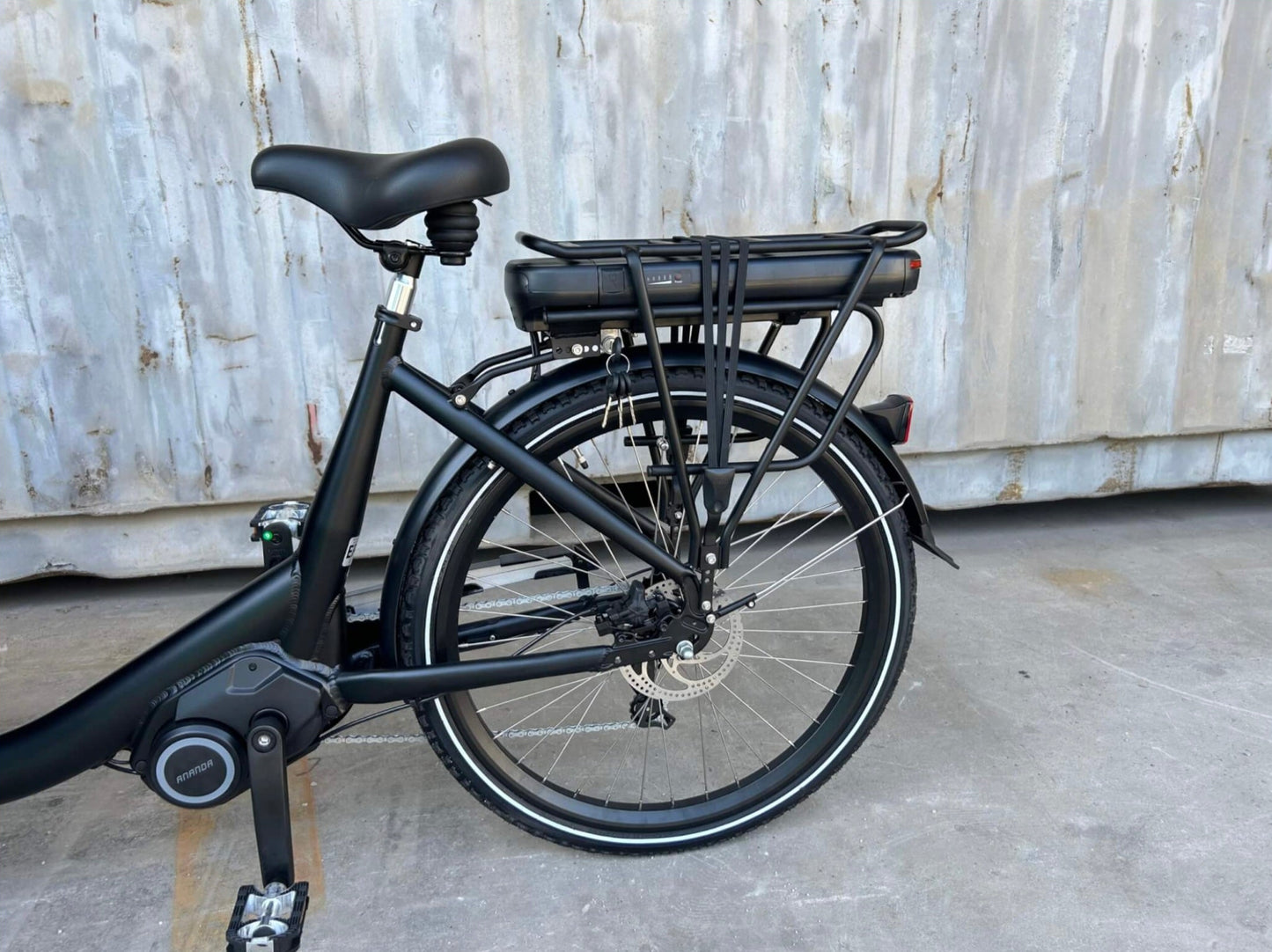

• Battery: 36V 14Ah (504Wh) lithium-ion with anti-theft lock

  • CE approved, range up to 65 km (40.4 miles)

• Charger: Intelligent TURBO charger with fast charging and automatic shut-off

  • CE, GS & TÜV certified

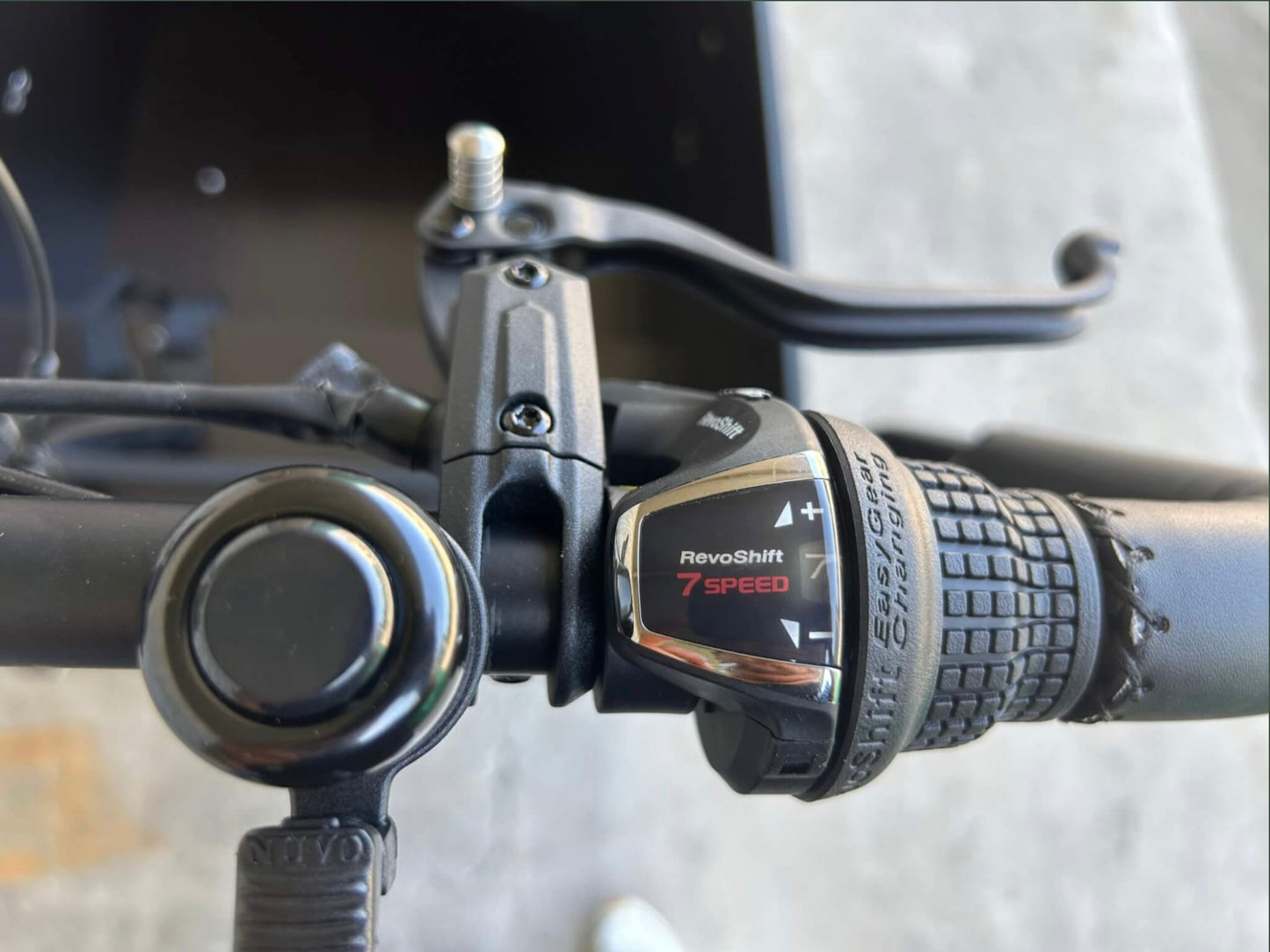

• Gears: 7-speed Shimano Tourney (SIS) with Shimano shifter and freewheel

• Brakes:

  • BENGAL hydraulic disc brakes (2 front, 1 rear)

  • Integrated electric brake system for motor cut-off

  • Parking brake included

• Steering:

  • Patented Anti-Tilt system

  • Automatically self-straightens for better balance and easy turning

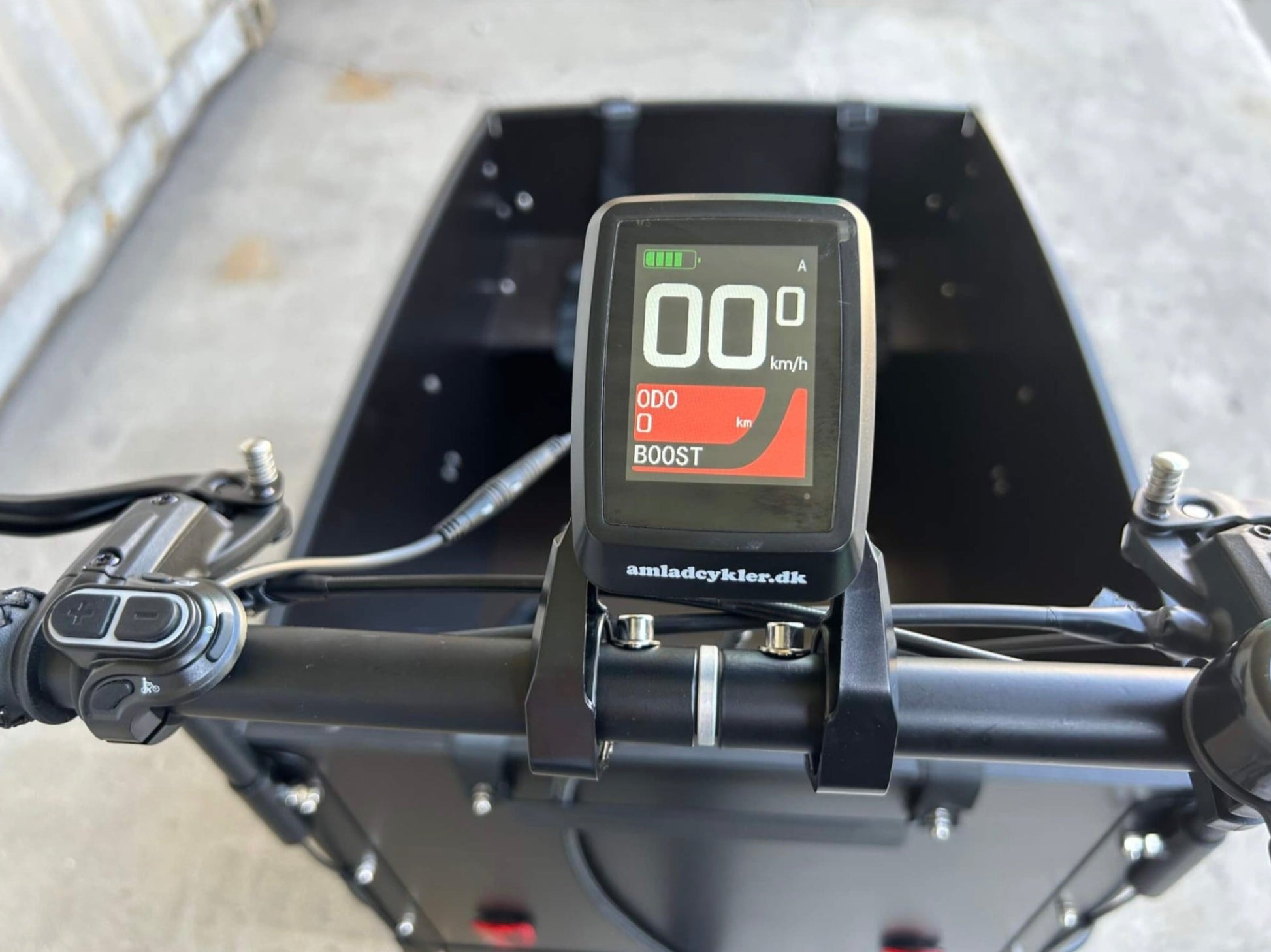

• Display: Colour LCD with USB charging port and multiple assist levels

• Walking Mode: Motor assist up to 5 km/h via handlebar button

• Tyres:

  • Front: 2 x 20" Kenda anti-puncture with reflective strips

  • Rear: 1 x 26" Kenda anti-puncture with reflective strip

• Rims: Heavy-duty aluminium with stainless steel spokes

• Box Dimensions: 91 x 59 cm (L x W)

• Bike Dimensions: 218 x 84 x 122 cm (L x W x H)

• Weight: 47 kg

• Loading Capacity: 150 kg

• Certification: CE marked and EAPC compliant (UK road legal)

Included Accessories

• Removable canopy system with clear panoramic window and side entry

• Front and rear mudguards

• Anti-rust chain, chain cover and bell

• Rear luggage rack with straps

• 2 x LED front lights + 1 rear light

• Y-style seat belts for up to 4 children

• Bench seat for 4 children

• Step board for easy child access
