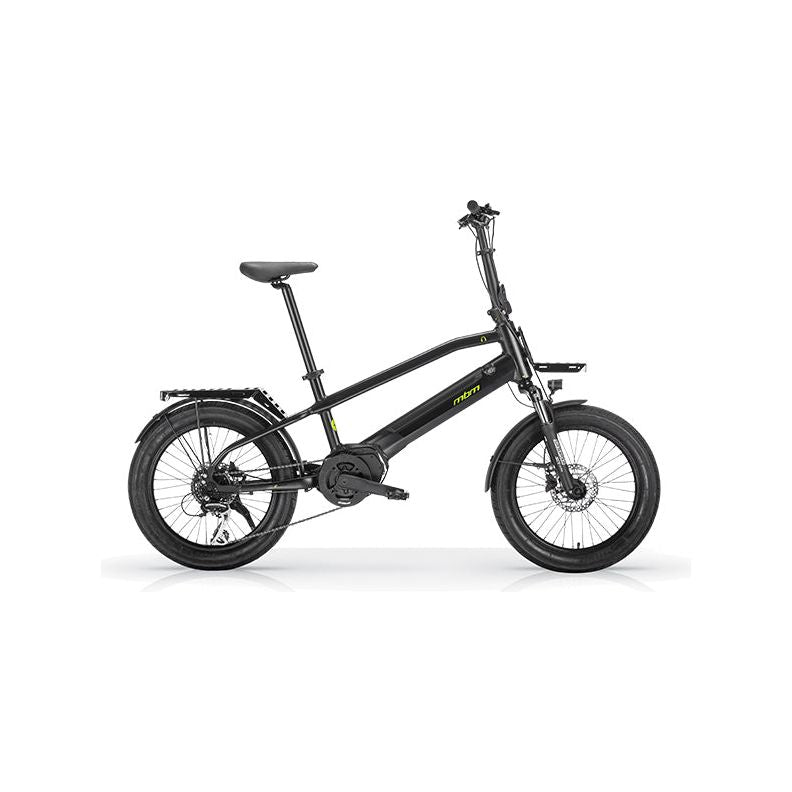

MBM Funk Urban – 20" Urban Bike

The MBM Funk Urban 20" is a bold, compact e-bike built for agile city riding and fun urban adventures. Equipped with a 250W Oli MOVE ONE motor delivering 60 Nm of torque, it offers responsive pedal assist up to the UK-legal 25 km/h (15.5 mph) — perfect for weaving through traffic or enjoying a sporty commute.

Its Spard YT 30207 integrated 36V, 10.4 Ah (360 Wh) battery provides an average range of 60 km (level 3) and up to 140 km (level 1), ensuring you can cover your city routes confidently. With a one-size 460 mm frame and a weight of 26 kg, the Funk Urban blends sharp handling with comfort and standout style.

User Manual

• Compact 20" frame for agile, nimble urban riding

• High-torque Oli motor delivers smooth, sporty assist

• Shimano 8-speed gearing for versatile urban performance

• Front suspension fork absorbs bumps and rough surfaces

• Hydraulic disc brakes ensure powerful, confident stops

• Long-range battery supports up to 140 km per charge

• Motor: Oli MOVE ONE, 250W, 60 Nm torque

• Top Speed: 25 km/h (15.5 mph) legal, higher when unrestricted

• Battery: Spard YT 30207 Integrated 36V, 10.4 Ah (360 Wh), removable

• Gearing: Shimano M315, 8-speed

• Rear Derailleur: Shimano Acera M360

• Brakes: Shimano MT200 hydraulic disc

• Discs: Shimano RT26, 160 mm front/rear

• Wheels: 20" Malvestiti Passion DH 43 black alloy double-wall rims

• Tyres: MBM 20 x 3.00 slick

• Frame: MBM Alloy 6061 hydroforming plus

• Fork: Suntour XCT-DS Plus 20

• Weight: 26 kg

• Frame Size: One size – 460 mm

• Crank Set: FSA 3101S, 170 x 38T

• Freewheel: Shimano HG200, 12/32, 8-speed

• Saddle: Selle Bassano Funk

• Lights: Spanninga 40 lux

• Display: LCD

• Power Levels: 5 assist modes

• Estimated Range: 60 km average (level 3), up to 140 km (level 1)

Order Confirmation: Once you place your order, we will pre-authorise your card, but your payment will not be processed immediately. We will then proceed to process your payment and begin preparing your order for dispatch.
Order Delivery: All orders are typically dispatched within 5 working days of payment being processed. You will receive tracking details by email within 24 hours of dispatch. If you have not received tracking information within 6 working days of placing your order, please contact us at support@pedalgo.co.uk and we’ll assist you.
Damages on Delivery: All products are fully insured during delivery. Please inspect all items carefully at the time of delivery. If you notice any visible damage, we strongly advise that you do not accept the delivery. If you later discover damage, please email clear photos of the affected items to support@pedalgo.co.uk as soon as possible. We will initiate an insurance claim on your behalf and help arrange a replacement or refund where applicable.
Cancellations & Refunds: Orders cancelled after 48 hours may be subject to a cancellation fee. If your order has already been dispatched, you (the buyer) will be responsible for any return shipping costs. Refunds will only be issued to the original payment method used to place the order.

All MBM electric bicycles come with a 2 year warranty from the date of purchase, covering the frame, motor, and battery. To activate the warranty, the product must be registered within 15 days of purchase through the official MBM warranty portal.

Battery Coverage Details
0 to 6 months: 100 percent coverage
7 to 12 months: 50 percent coverage
13 to 24 months: 25 percent coverage

Please note: battery coverage depends on proper use and maintenance. Allowing the battery to discharge below the allowed limit may void the warranty.

Exclusions
The warranty does not cover
Normal wear and tear items such as tires, brake pads, chains, and cables
Damage from accidents, misuse, or unauthorized modifications
Improper assembly or use of incompatible parts

If you experience any issues or need support, Pedal Go is your first point of contact. We are here to help and assist you with any warranty or product concerns.

MBM Electric Bike Warranty

All MBM electric bikes come with a comprehensive manufacturer’s warranty for your peace of mind.

Warranty Coverage:

• Frame: 2 years

• Electric Motor: 2 years

• Battery: 2 years (subject to proper use and charging cycles)

• Controller & Display: 1 year

• Charger: 1 year

• Other Electrical Components: 1 year

• Mechanical Parts (gears, brakes, chain, etc.): 6 months (excluding wear and tear)

What’s Not Covered:

• Normal wear and tear (tyres, brake pads, cables, etc.)

• Damage due to misuse, accidents, neglect, or improper maintenance

• Modifications or alterations to the bike’s original condition

• Water damage caused by submersion or pressure washing

• Use of non-original parts or chargers

Warranty Claims:

To make a warranty claim, please contact us with your order number, a description of the issue, and clear photos or videos if possible. We’ll work with MBM to assess and resolve the problem quickly.

Please Note:
Regular servicing and correct use are essential to maintain warranty coverage. Batteries should be stored in a cool, dry place and charged at least once a month if not in regular use.
