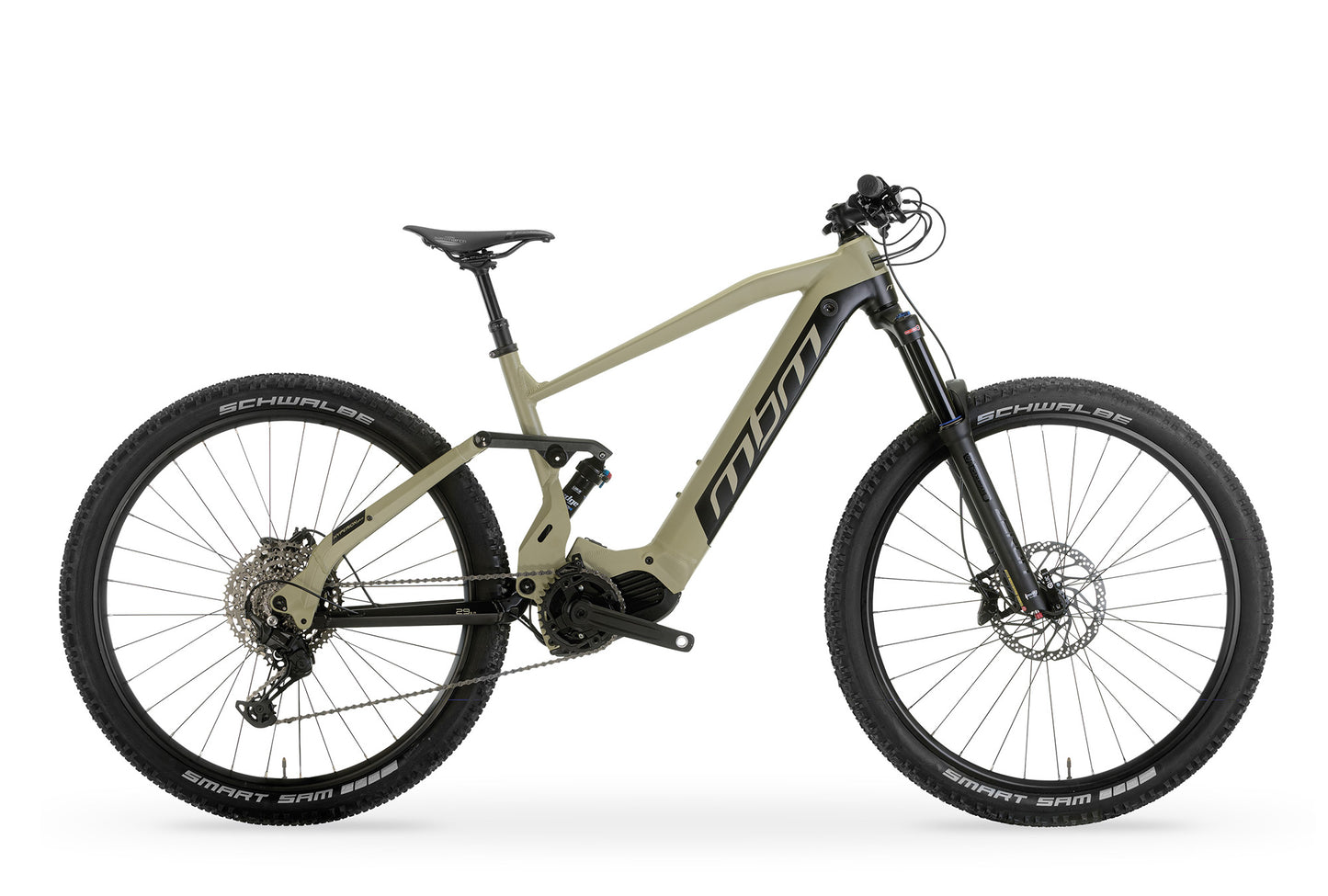

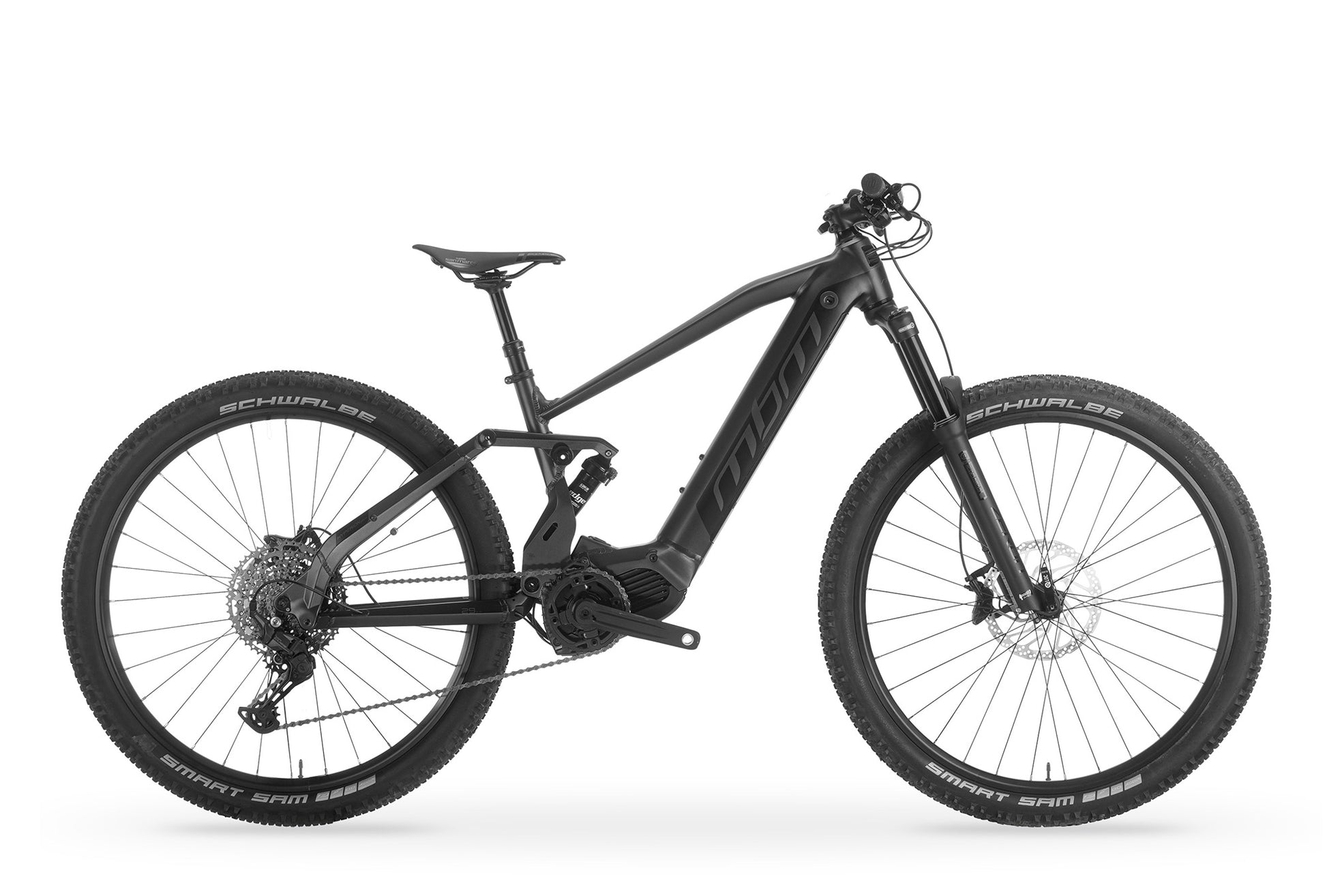

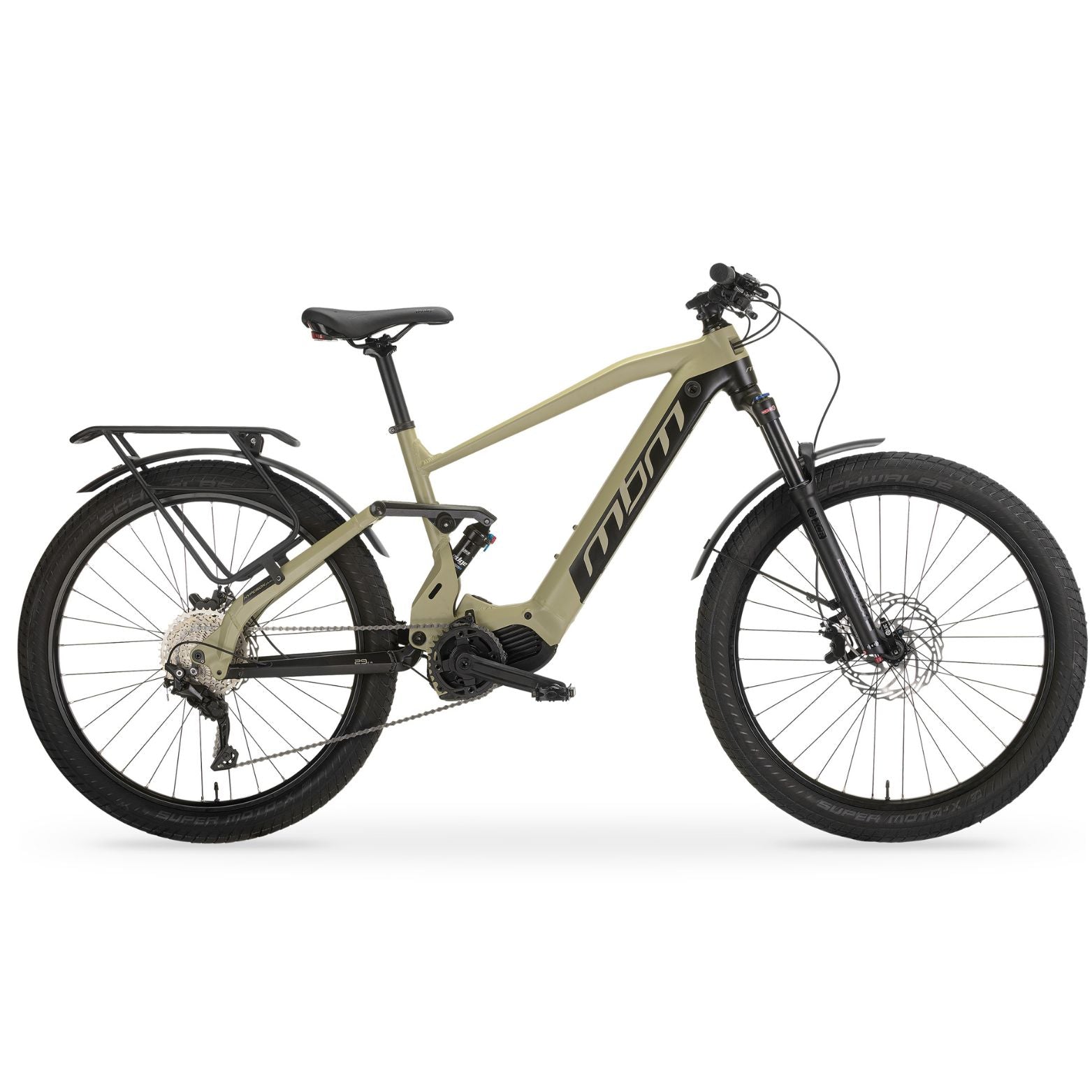

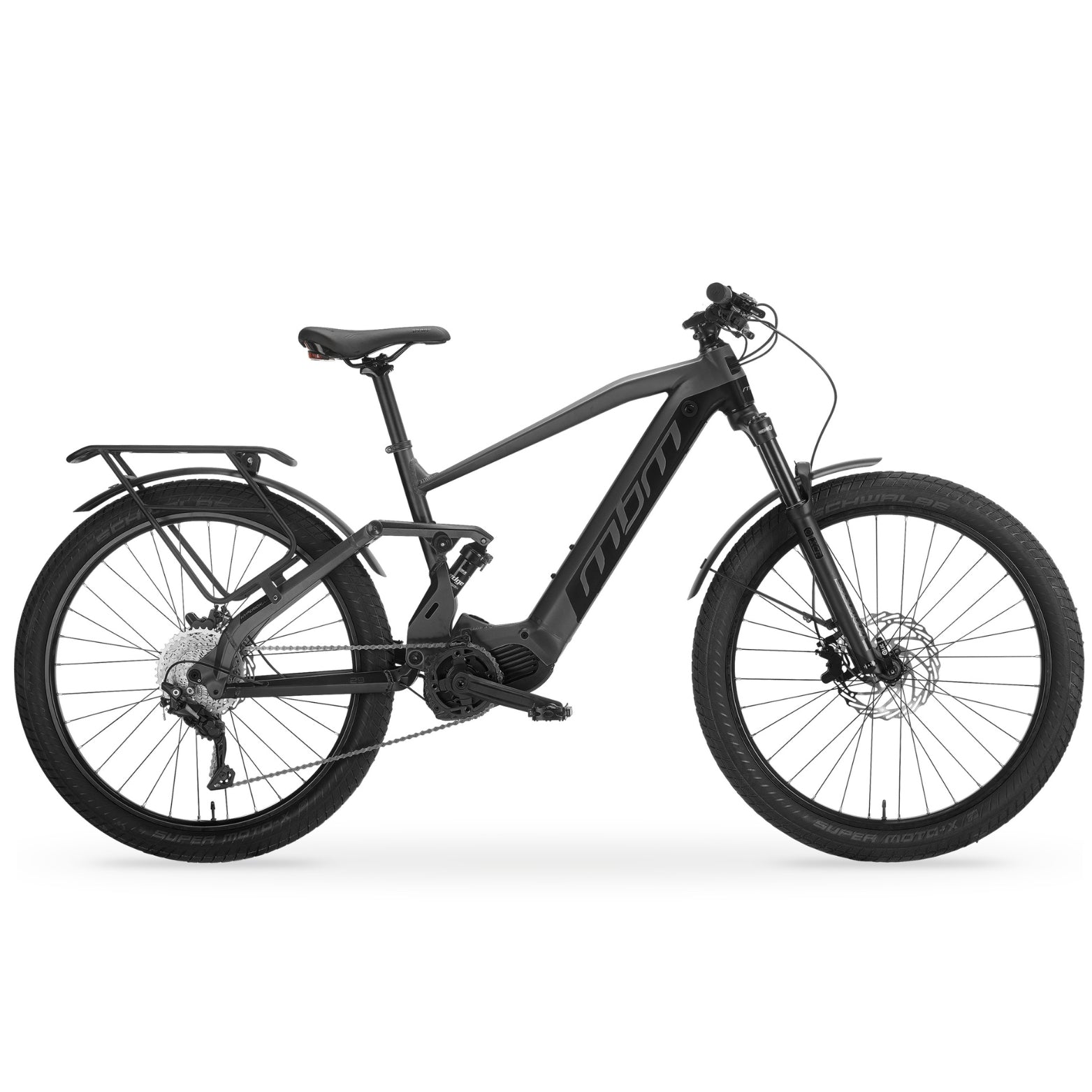

MBM - HYPERION PLUS SUB - MTD E-bike 27.5"

Built for riders who demand more from their bike, the MBM Hyperion Plus SUB 27.5" is a true all-rounder — part trail beast, part urban explorer.

Designed and assembled in Italy, it blends rugged off-road capability with commuter practicality, making it just as at home on woodland trails as it is on busy roads.

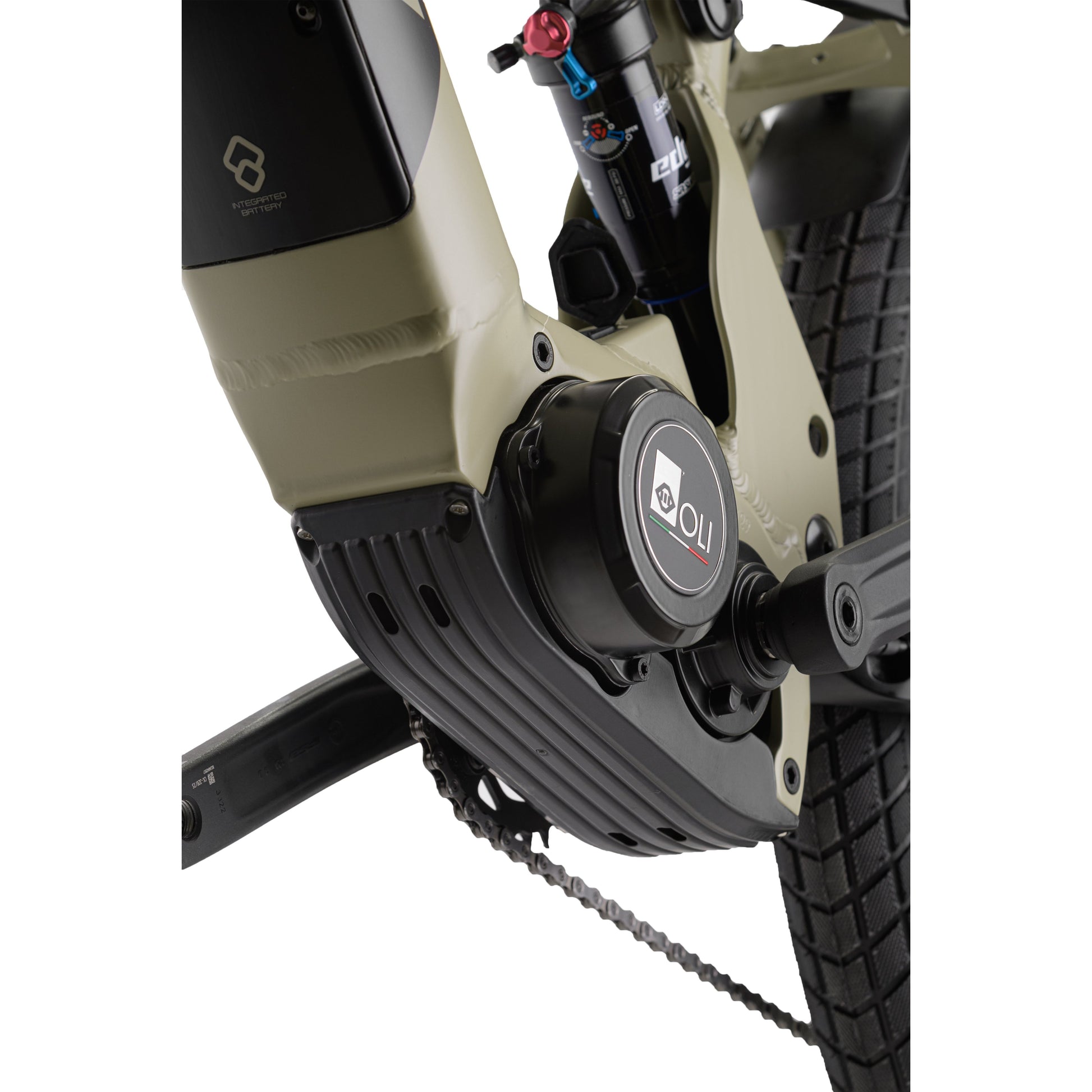

Powered by the Oli Sport Plus mid-drive motor, the Hyperion Plus SUB delivers 85Nm of torque across five assistance levels. The fully integrated 630Wh battery gives you up to 160 km of range in Eco mode, so you can explore further with fewer stops. With a top assisted speed of 25 km/h (15.5 mph), it’s fully road legal in the UK.

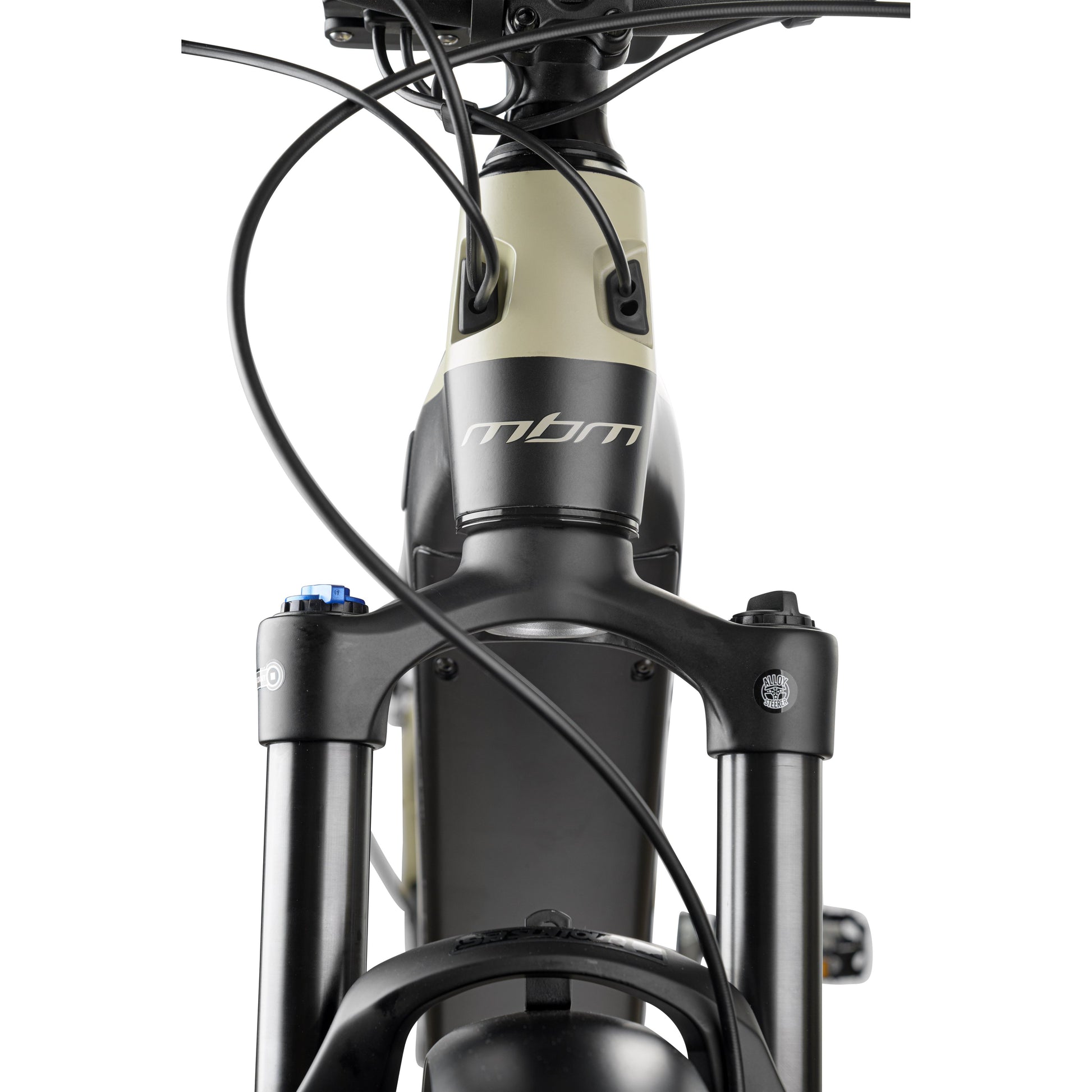

This full-suspension e-MTB features 140mm of rear travel and a Suntour Zeron 34 Air fork up front, built to handle bumps, roots, and rough terrain with ease. Shimano’s Deore 11-speed drivetrain offers smooth and reliable shifting, and the powerful 4-piston hydraulic disc brakes ensure confident stopping power in all conditions.

The bike also includes useful everyday features like front and rear mudguards, a rear carrier, and an integrated saddle light — making it ideal for commuting, touring, or just heading out wherever the path takes you.

User Manual

Key Features

• Mid-drive Oli Sport Plus motor with 85Nm torque

• 630Wh integrated battery with up to 160km range

• Full suspension with Suntour Zeron 34 Air fork and Edge rear shock

• Shimano Deore 11-speed drivetrain

• Promax 4-piston hydraulic disc brakes

• Rear carrier, mudguards, and integrated saddle light included

• Colour LCD display with 5 assist levels

• Designed and assembled in Italy

Specifications

• Frame: Aluminium 6061 hydroformed, full suspension

• Fork: Suntour Zeron 34 Boost Air HLO, 110mm travel

• Rear Shock: Suntour Edge LOR, 210x55mm

• Motor: Oli Sport Plus, 85Nm torque, mid-drive

• Battery: Phylion BN-21L, 36V 17.4Ah (630Wh), integrated

• Display: Colour LCD, 5 pedal assist levels

• Gears: Shimano Deore M5120 Shadow, 11-speed

• Brakes: Promax 930 hydraulic, 4-piston

• Brake Rotors: 203mm front, 180mm rear

• Wheels: 27.5” alloy double wall with eyelets

• Tyres: Schwalbe Super Moto 27.5x2.80

• Weight: 27kg

• Top Speed: 25 km/h (15.5 mph UK legal)

• Range: Up to 160km on Eco mode

• Saddle: Selle Bassano Reko Sport with built-in light

• Extras: Rear carrier, front and rear mudguards

• Colours: Matt Sand, Matt Black

• Sizes: Small (400mm), Medium (450mm), Large (500mm)

Order Confirmation: Once you place your order, we will pre-authorise your card, but your payment will not be processed immediately. We will then proceed to process your payment and begin preparing your order for dispatch.
Order Delivery: All orders are typically dispatched within 5 working days of payment being processed. You will receive tracking details by email within 24 hours of dispatch. If you have not received tracking information within 6 working days of placing your order, please contact us at support@pedalgo.co.uk and we’ll assist you.
Damages on Delivery: All products are fully insured during delivery. Please inspect all items carefully at the time of delivery. If you notice any visible damage, we strongly advise that you do not accept the delivery. If you later discover damage, please email clear photos of the affected items to support@pedalgo.co.uk as soon as possible. We will initiate an insurance claim on your behalf and help arrange a replacement or refund where applicable.
Cancellations & Refunds: Orders cancelled after 48 hours may be subject to a cancellation fee. If your order has already been dispatched, you (the buyer) will be responsible for any return shipping costs. Refunds will only be issued to the original payment method used to place the order.

MBM Electric Bike Warranty

All MBM electric bikes come with a comprehensive manufacturer’s warranty for your peace of mind.

Warranty Coverage:

• Frame: 2 years

• Electric Motor: 2 years

• Battery: 2 years (subject to proper use and charging cycles)

• Controller & Display: 1 year

• Charger: 1 year

• Other Electrical Components: 1 year

• Mechanical Parts (gears, brakes, chain, etc.): 6 months (excluding wear and tear)

What’s Not Covered:

• Normal wear and tear (tyres, brake pads, cables, etc.)

• Damage due to misuse, accidents, neglect, or improper maintenance

• Modifications or alterations to the bike’s original condition

• Water damage caused by submersion or pressure washing

• Use of non-original parts or chargers

Warranty Claims:

To make a warranty claim, please contact us with your order number, a description of the issue, and clear photos or videos if possible. We’ll work with MBM to assess and resolve the problem quickly.

Please Note:
Regular servicing and correct use are essential to maintain warranty coverage. Batteries should be stored in a cool, dry place and charged at least once a month if not in regular use.
